Application of air filters in the electronics manufacturing industry

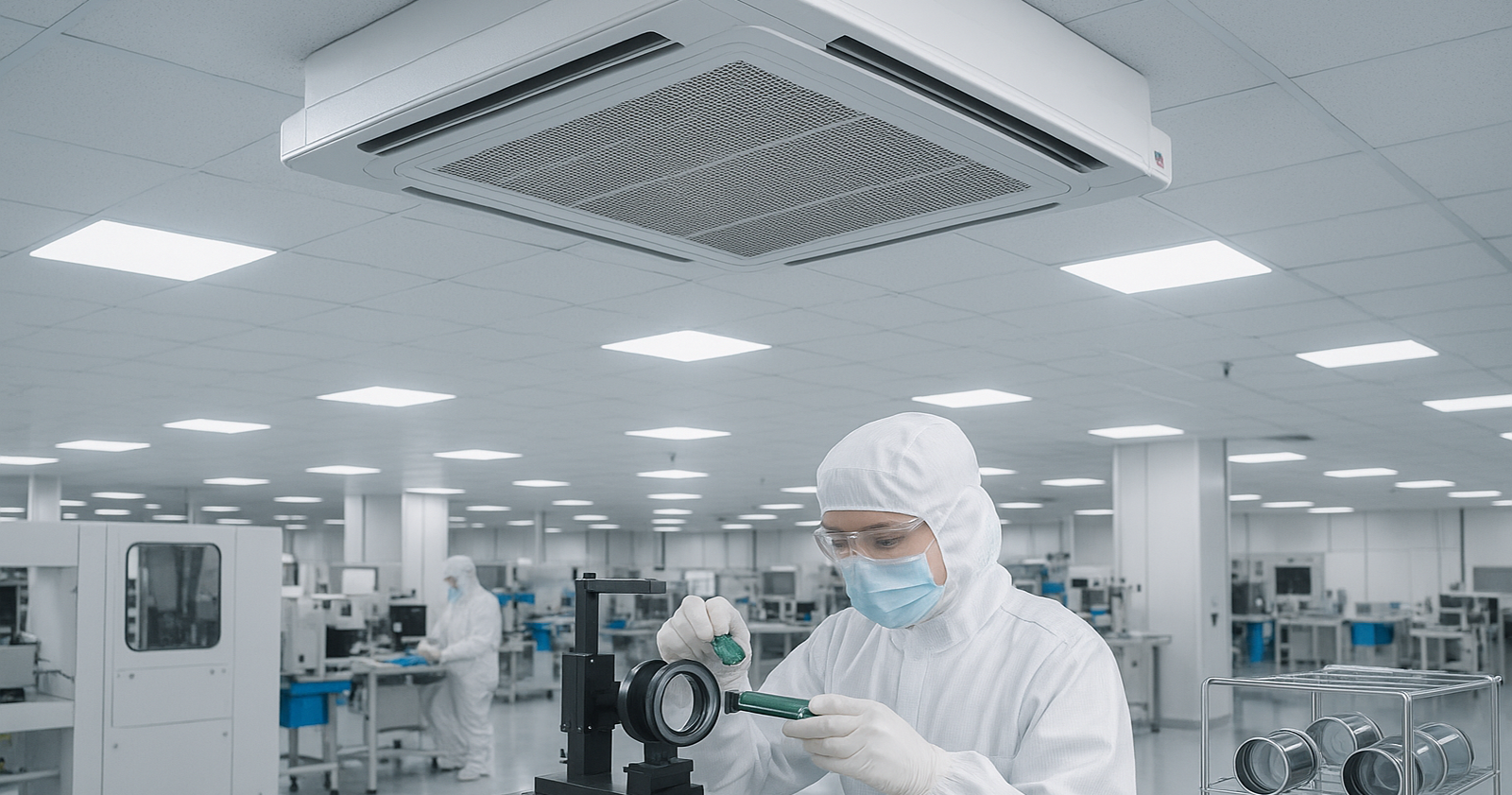

Dust-free environment requirements in the electronics manufacturing industry

Industry Background
In the modern electronic manufacturing industry, especially in the production process of precision products such as semiconductors, PCBs (printed circuit boards), and optical components, extremely high air cleanliness is required. This is because electronic products are very sensitive to environmental conditions during the production process. Even tiny dust, static electricity, or chemical pollution may affect the performance and appearance of the product. For example, tiny particle pollution in semiconductor manufacturing may even affect the manufacturing accuracy of the wafer, resulting in unstable product performance or failure to pass quality inspection. Therefore, in order to ensure production quality, the electronic manufacturing industry must strictly control pollutants in the air to ensure the stability of the dust-free environment.

The core role of air filtration system
In order to deal with air pollution in electronic manufacturing, air filtration system plays a key role in this process. High-efficiency air filters can effectively remove various types of particulate matter in the air, such as dust, smoke and tiny particles, to provide a clean production environment. Through the fine filtration of air filters, fine particles and harmful gases that may cause production problems can be removed, thereby ensuring product quality and improving production efficiency. This is why the application of air filters is crucial in electronic manufacturing clean rooms.

Clean environment standards and air pollution control in electronics manufacturing

Cleanroom Grade Standards
According to ISO 14644-1, the air cleanliness requirements for clean environments in electronic manufacturing are very strict. The standard divides cleanrooms into different grades, corresponding to different particle concentration requirements. For example, Class 1 cleanrooms require no more than 1 particle with a particle size of 0.1 microns per cubic meter of air, while Class 9 cleanrooms allow much more particles. The required cleanroom grades are also different for different electronic manufacturing processes, such as semiconductor production and precision component processing. In order to meet these cleanliness requirements, the air filtration system must have a sufficiently efficient filtration capacity to effectively intercept and remove different levels of particulate pollutants.

Pollution Source Analysis
In the electronic manufacturing process, the main sources of air pollution come from production equipment, material handling, and environmental pollutants. Dust is one of the main particulate pollutants, which may be generated by the handling of raw materials, cutting or grinding in the processing process. Electrostatic particles are another common source of pollution. These particles may produce electrostatic adsorption on the surface of electronic components, interfere with component function, and cause failures. In addition to particle pollution, gaseous pollutants such as harmful gases (such as nitrides, sulfides, etc.) may also affect product performance and the production environment. In the electronic manufacturing process, it is crucial to understand the pollution sources and take targeted air pollution control measures.

Multi-stage filtration strategy of air filtration system
Air filtration systems usually adopt a multi-stage filtration strategy of primary, medium and high efficiency to ensure comprehensive filtration from large particles to ultrafine particles. The primary filter is mainly used to intercept larger particles, such as dust larger than 5μm; the medium efficiency filter is specifically used to remove particles of 1-5μm to further optimize air quality; and the high efficiency filter (such as HEPA and ULPA filter) is responsible for removing fine particles below 0.3μm to ensure that the production environment meets high cleanliness requirements. Through such multi-stage filtration, the air quality is comprehensively improved to ensure the cleanliness of the environment in the electronic manufacturing process.

Primary filter: basic protection, intercepting large particles of pollutants

Function
The function of the Primary filter mesh is to remove larger particle pollutants in the air, especially large dust particles with a diameter of ≥5μm. They are the first line of defense in the air filtration system, mainly used to prevent larger particle pollutants from entering the subsequent medium-efficiency or high-efficiency filtration system, thereby avoiding excessive contamination or clogging of the rear-end filter and maintaining the normal operation of the entire system.

Common filter materials
The primary filter is usually made of non-woven fabrics, metal mesh or activated carbon filter materials. These materials have strong particle interception capabilities and can effectively remove large particle pollutants in the air. Non-woven filter material is a common primary filter material with good dust collection capabilities; metal mesh filter material is used for rougher filtration, usually in industrial environments; activated carbon filter material can not only remove large particles, but also absorb harmful gases in the air.

Application scenarios
The primary filter is usually used for front-end filtration of fresh air systems, pre-filtration equipment and other equipment. Its main function is to provide protection for subsequent medium-efficiency and high-efficiency filters to avoid the accumulation of larger particle pollutants, thereby reducing the maintenance frequency and cost of the equipment.

Medium efficiency filter: fine filtration to improve air cleanliness

Function
Medium Efficiency Air Filters are specially designed to remove particles of 1-5μm, which can effectively reduce suspended particles and further improve air quality. In electronic manufacturing, if these particles are not filtered in time, they may affect the accuracy of the manufacturing process and the quality of the product. Therefore, medium efficiency filters are essential to improve cleanliness.

Common filter materials
Common medium-efficiency filter materials include synthetic fiber filter materials, glass fiber filter materials, and activated carbon filter materials. These materials can not only effectively filter suspended particles, but also have a high dust holding capacity and are suitable for long-term operation. In particular, glass fiber filter materials can still maintain a stable filtering effect in a high humidity environment.

Applicable scenarios
Medium-efficiency filters are widely used in air conditioning and ventilation systems in commercial buildings, industrial workshops, medical facilities, etc. to efficiently intercept fine particles in the air and improve air quality.

High-efficiency filter: core guarantee, removes ultra-fine particles

Function
High Efficiency Air Filters are mainly used to intercept ultrafine particles larger than 0.3μm, and can achieve very high filtering accuracy. Especially in production environments that require ultra-high cleanliness, such as dust-free production lines and semiconductor manufacturing, the application of high-efficiency filters is crucial. It can ensure that fine particles in the air do not enter the production environment, thereby reducing product defect rates.

Common types
Common types of high-efficiency filters include HEPA (high-efficiency air filter) and ULPA (ultra-high-efficiency air filter). The standard filtration efficiency of HEPA filters is 99.97% (for 0.3μm particles), while ULPA filters are more efficient and can filter out 99.9995% of 0.12μm particles. HEPA and ULPA are ideal choices for electronic manufacturing environments that require extremely high cleanliness.
Applicable scenarios
High-efficiency filters are widely used in dust-free production lines, semiconductor manufacturing workshops, optical component assembly and other production sites that have extremely demanding requirements for clean environments. In these places, fine particles in the air may directly affect the precision of the production process, so the application of high-efficiency filters is crucial.

Reasonable configuration and maintenance strategy of air filter

Optimization of multi-stage filtration system
In order to achieve the best air purification effect, primary, medium and high efficiency filters need to be reasonably configured to form a multi-stage filtration system. The primary filter is responsible for intercepting large particle pollutants, the medium efficiency filter filters suspended particles, and the high efficiency filter focuses on removing ultrafine particles. Reasonable matching can effectively improve the filtration efficiency of the entire system and ensure that the air quality is fully guaranteed.
Replacement cycle and maintenance method
The maintenance and replacement cycle of the filter is crucial to the effect of the air filtration system. Different types of filters have different replacement cycles. Generally speaking, the primary filter needs to be cleaned or replaced regularly, while the medium efficiency and high efficiency filters need to be replaced according to the usage. Regular inspection and timely replacement of filters can ensure that the system always maintains the best working condition.
Energy efficiency and environmental protection considerations
With the improvement of environmental protection requirements, many electronic manufacturers have begun to pay attention to the energy efficiency of filters. Our air filters use more environmentally friendly materials, and through optimized design, energy consumption is reduced and operating costs are reduced. Efficient filters can also reduce the emission of air pollutants, which meets the requirements of environmental protection policies.

Air Filters Help Electronic Manufacturing Clean Production

The importance of reasonable configuration of primary, medium and high efficiency filters
In the electronics manufacturing industry, the design and configuration of air filtration systems are crucial to the maintenance of a clean environment. The reasonable configuration of primary, medium and high efficiency filters can not only ensure the cleanliness of the production environment, but also maximize the operating efficiency of the system. Through the use of three filters with different efficiencies, effective filtration can be performed at all levels from large particles to ultrafine particles, ensuring that each layer of pollutants is accurately removed to avoid the impact of pollutants on the production process and product quality.
Reasonable filter configuration can also reduce the burden of a single filter, avoid frequent replacement due to excessive pollution, and thus reduce the maintenance cost and operating cost of the equipment. This is of great significance for improving overall production efficiency, reducing environmental pollution and extending the service life of equipment.

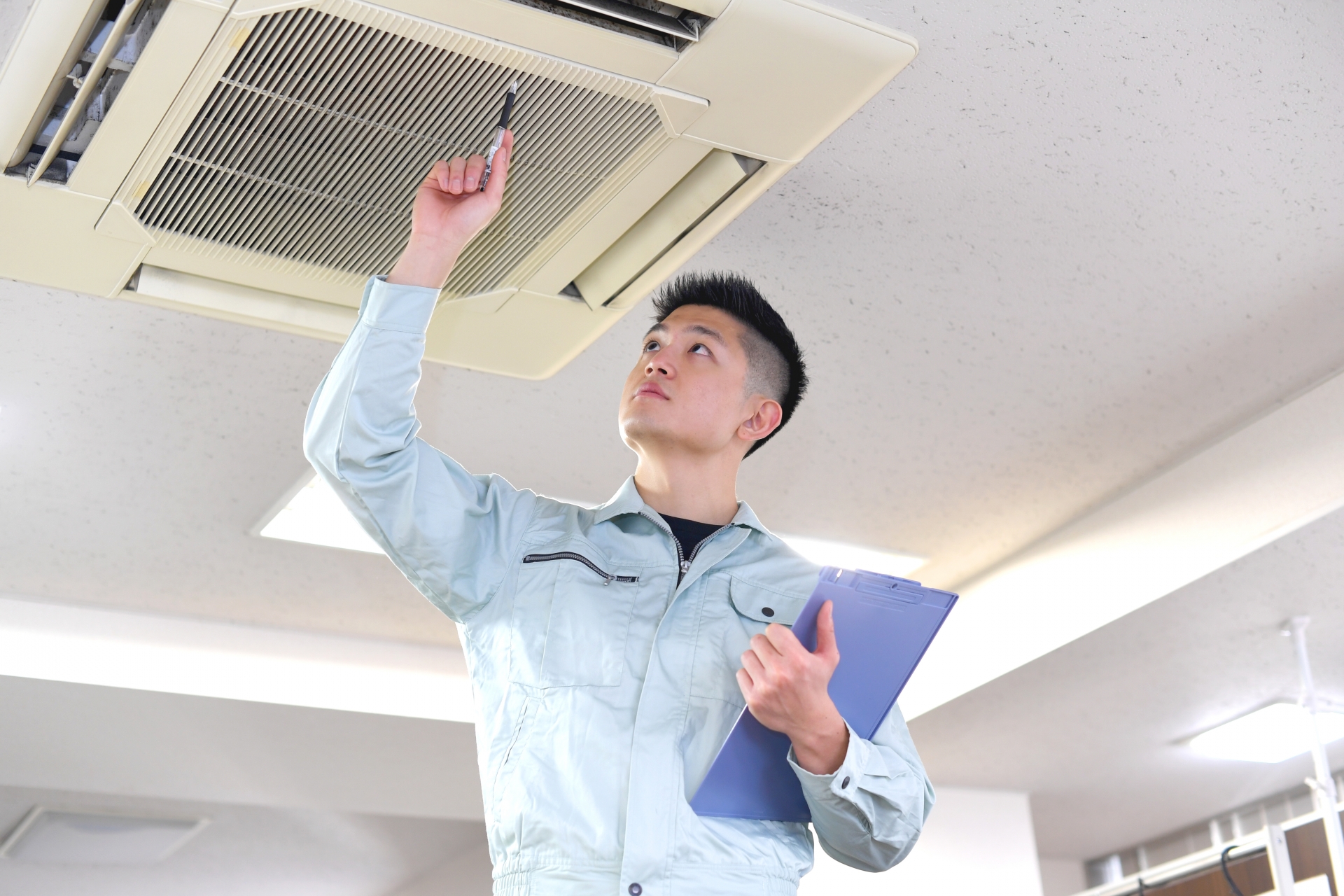

Regular maintenance and intelligent management improve the efficiency of air filtration systems
Although high-efficiency air filters can provide ideal air cleanliness, only through regular maintenance and intelligent management can the continuous stability of the filtration system in long-term use be ensured. By regularly monitoring and replacing filters, the system can maintain the best filtration effect, avoid excessive accumulation of pollutants and filter clogging, and ensure that air quality is always under control.
The introduction of intelligent management systems makes maintenance more efficient. Through sensors monitoring air quality and filter status, the intelligent system can provide real-time feedback on system operation status and promptly remind operators to perform necessary maintenance or replacement work. This can not only improve the overall efficiency of the air filtration system, but also reduce human operating errors and improve management efficiency.
